Plant List
Leveraging a state-of-the-art plant list, we provide high-accuracy CNC solutions tailored for the rigorous demands of the Aerospace, Medical, and Energy industries. Our facility is optimized for complex geometries and micron-level tolerances.
Sliding Head Machines
SR-20JII Type B
The SR-20JII Type B improves upon the long-serving SR-20J model, offering increased rigidity, accuracy and versatility through a combination of improved engineering and expanded functionality.
Combining a 6-tool turning platen with a 5-spindle cross drilling unit and an 8-spindle back working tool post, the SR-20JII boasts impressive tooling capacity allowing for a huge range of machining options.
The updated design features dovetail slideways for the X1, Y1, Z2 and Y2 axes improving the machine’s rigidity – ensuring stable, repeatable results even when cutting the most challenging materials.
The sub-spindle speed, power and accuracy have also been increased by adopting a built-in spindle motor offering 10,000 rpm and 3.7Kw.
The SR-20JII Type B represents the latest evolution in 20mm sliding head machining – and the most advanced technology of its type on the market

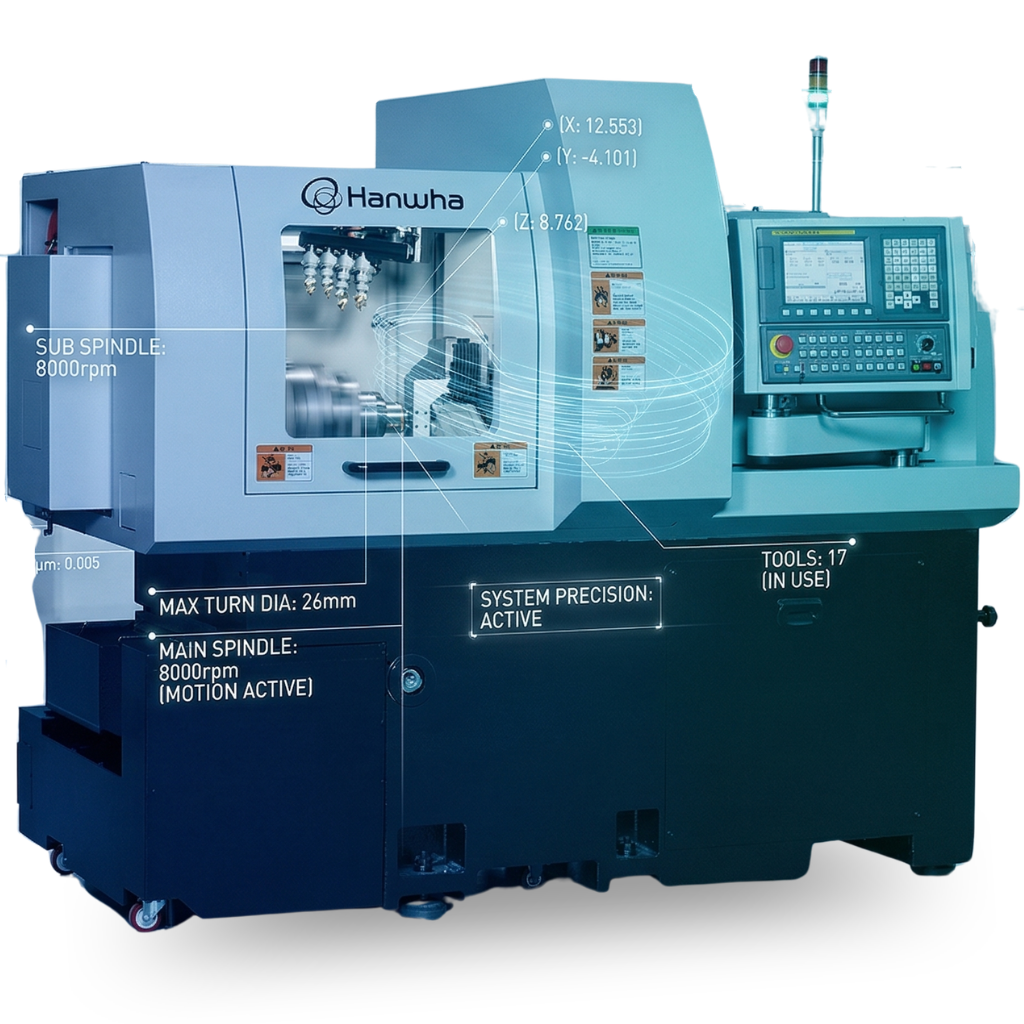

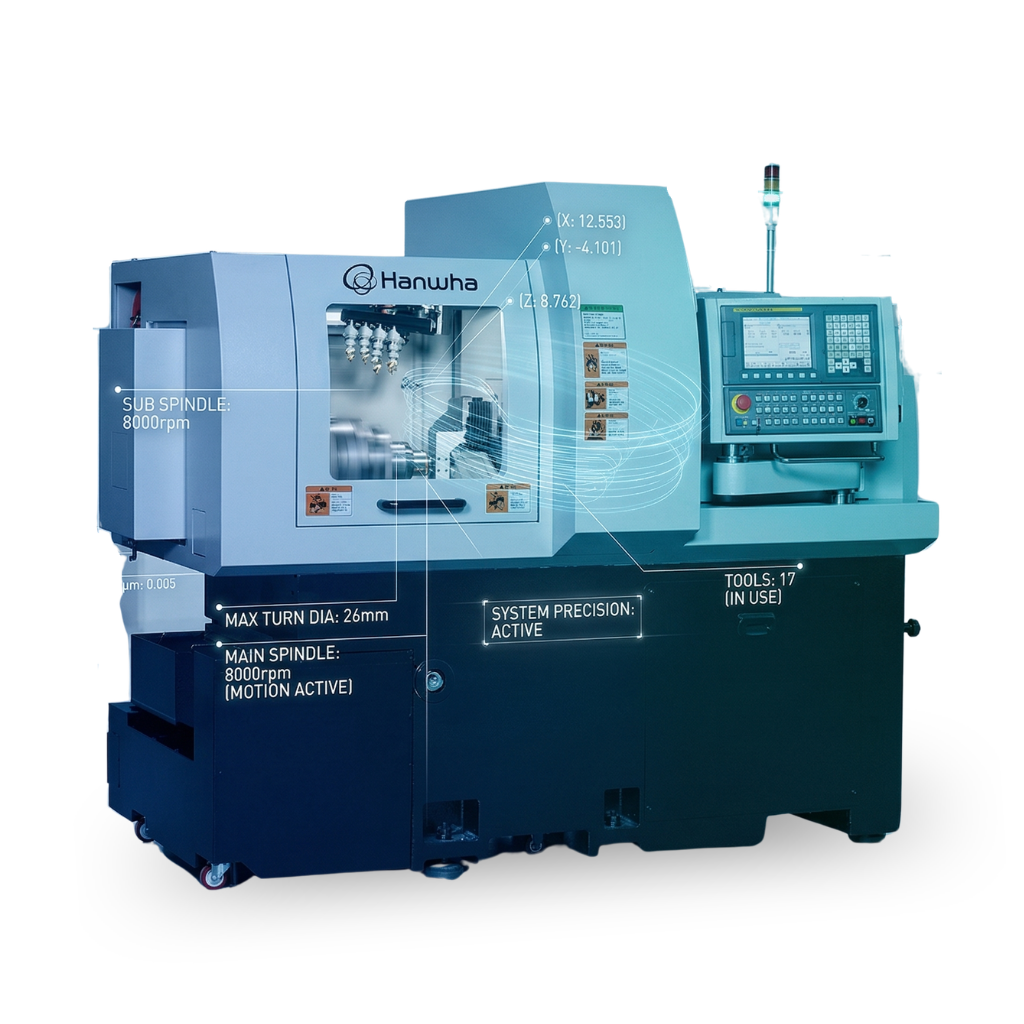

Hanwha XP26 Sliding Head CNC Lathe
The Hanwha Dugard XP26 is a high-performance sliding head CNC lathe designed to bridge the gap between traditional fixed head technology and the precision of Swiss-type turning.
Featuring a 26mm maximum turning diameter and synchronized 8,000 rpm main and sub-spindles, this machine is optimized for high-speed, complex part production with minimal cycle times.
With a versatile 17-tool configuration and a robust Fanuc control interface, the XP26 offers an economical yet powerful solution for industries like automotive and medical, providing the exceptional rigidity and micron-level accuracy required for professional-grade component manufacturing.

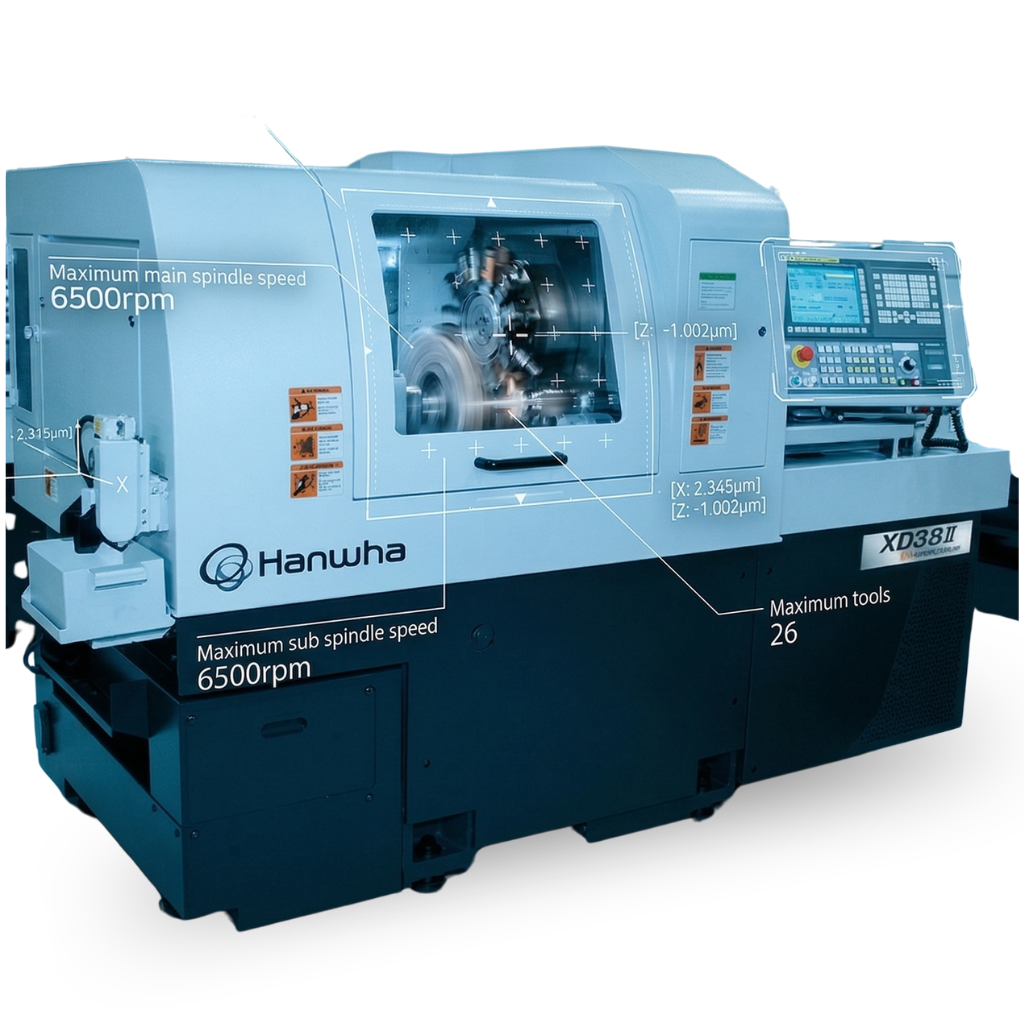

Hanwha XD 38R Sliding Head CNC Lathe
EDM Machines
AZ-400A Cutting-Edge Wire Cut EDM

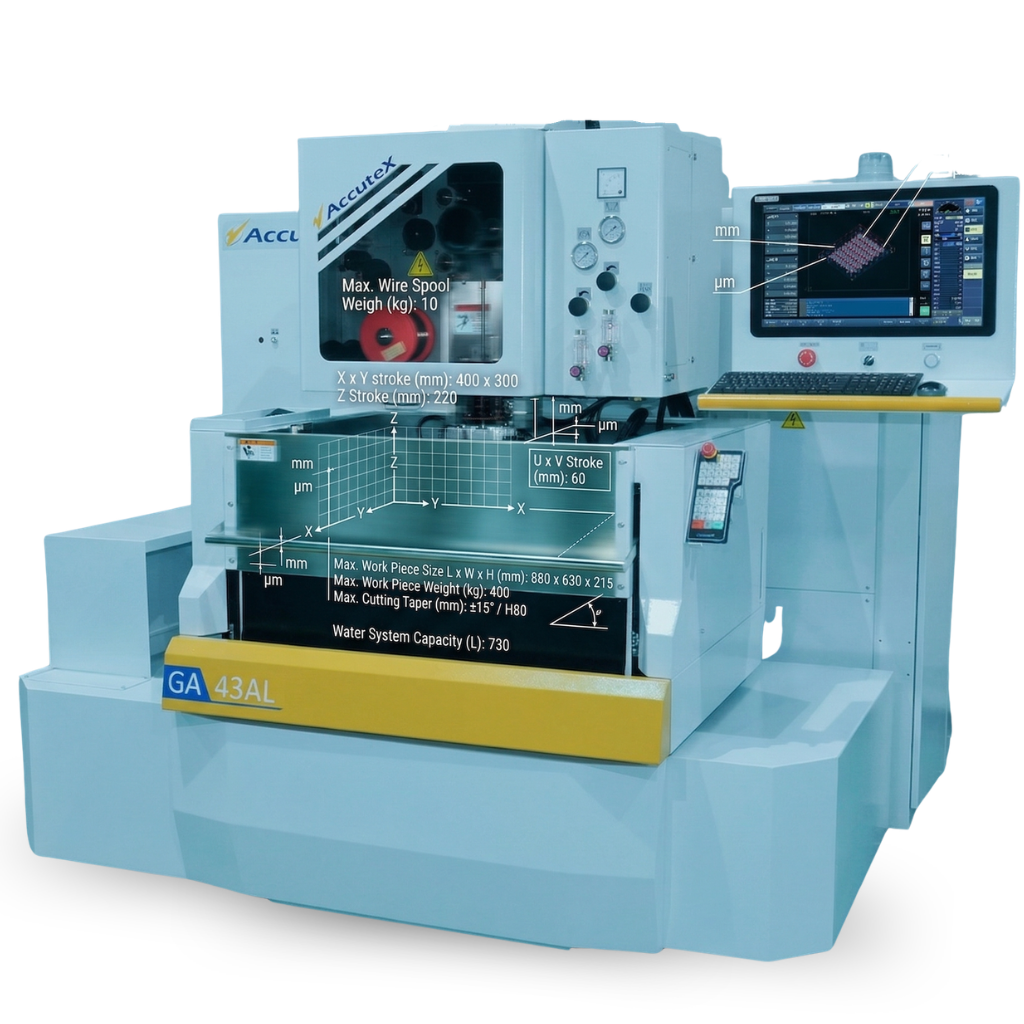

The GA-43AL is a high-performance Wire Cut EDM (Electrical Discharge Machining) machine engineered for precision CNC machining applications. Designed to accommodate workpieces up to 880 x 630 x 215 mm and a maximum weight of 400 kg, this machine delivers reliable, heavy-duty cutting performance for demanding industrial environments.
Equipped with an X/Y stroke of 400 x 300 mm and a U/V stroke of 60 x 60 mm, the GA-43AL offers exceptional multi-axis CNC control for complex geometries. A Z stroke of 220 mm and a maximum cutting height of 175 mm ensure versatility across a wide range of workpiece dimensions, while the ±15° taper cutting capability (at H80mm) enables precise angled cuts for intricate part profiles.
Built for uninterrupted production, the GA-43AL supports a wire spool of up to 10 kg, minimizing downtime during long CNC wire EDM operations. Its robust water system holds 730 liters, maintaining optimal dielectric fluid conditions for consistent cutting accuracy and surface finish quality.
GA-43 General Wire Cut EDM

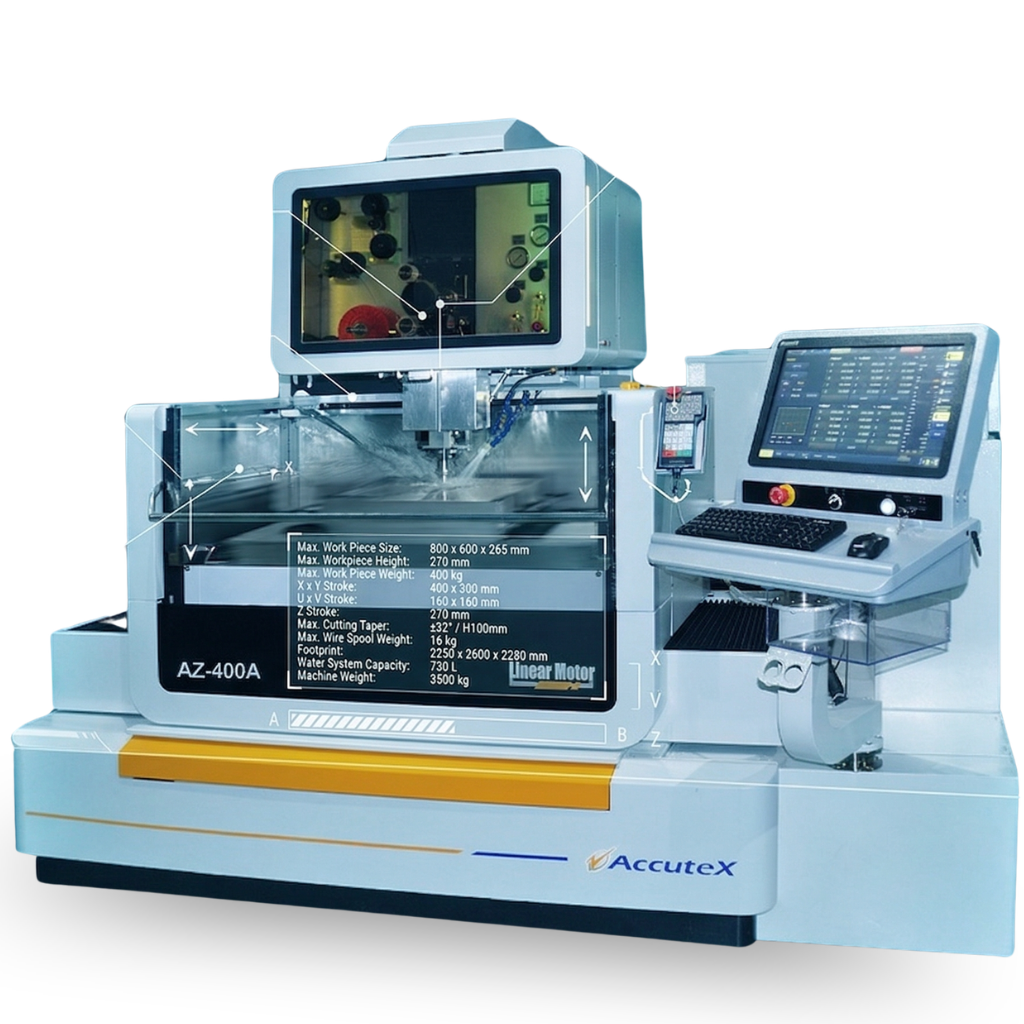

The AZ-400A is a high-performance Wire Cut EDM (Electrical Discharge Machining) machine engineered for precision CNC machining applications. Designed to accommodate workpieces up to 800 x 600 x 265 mm and a maximum weight of 400 kg, this machine delivers reliable, heavy-duty cutting performance for demanding industrial environments.
Equipped with an X/Y stroke of 400 x 300 mm and a U/V stroke of 160 x 160 mm, the AZ-400A offers exceptional multi-axis CNC control for complex geometries. A Z stroke of 270 mm and a maximum cutting height of 270 mm ensure versatility across a wide range of workpiece dimensions, while the ±32° taper cutting capability (at H100mm) enables precise angled cuts for intricate part profiles.
Built for uninterrupted production, the AZ-400A supports a wire spool of up to 16 kg, minimising downtime during long CNC wire EDM operations. Its robust water system holds 730 litres, maintaining optimal dielectric fluid conditions for consistent cutting accuracy and surface finish quality.
Milling Machines

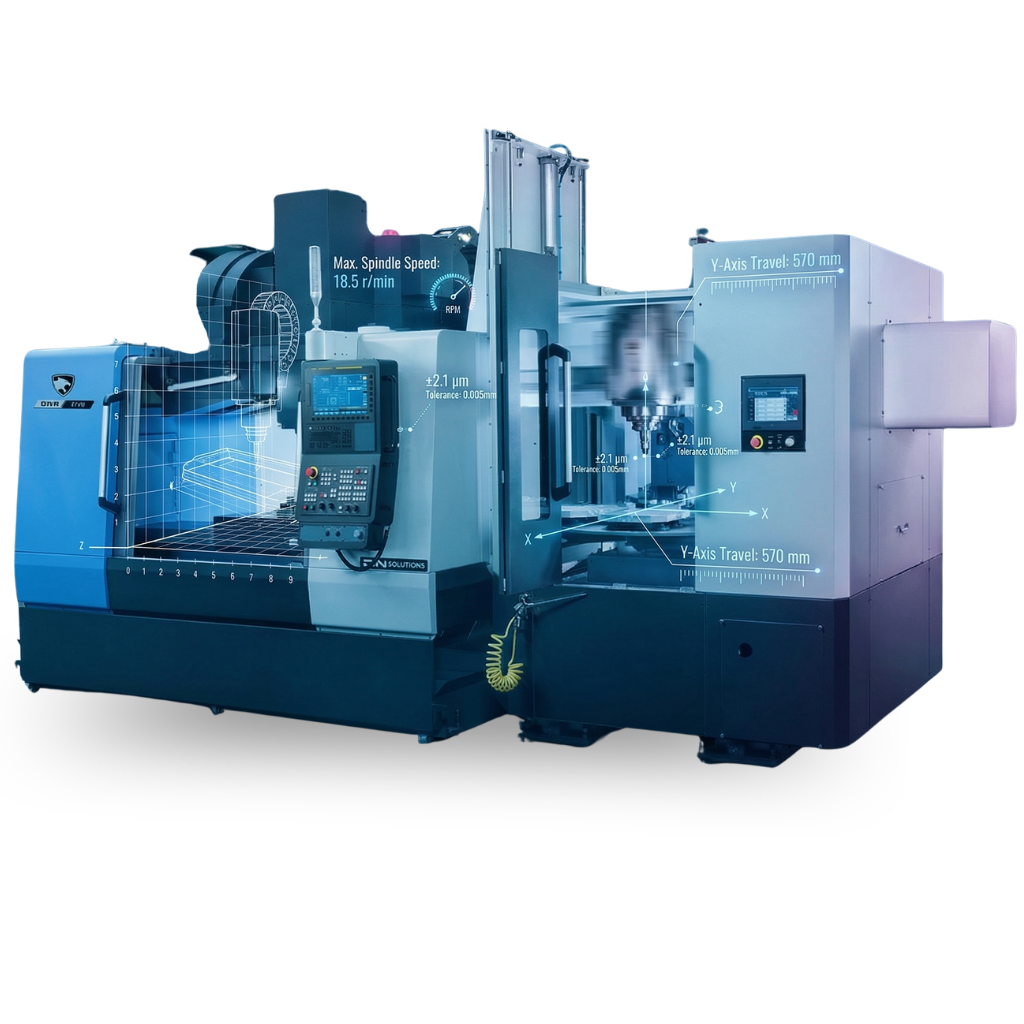

DNM 5700
The DN Solutions DNM 5700 is a high-performance vertical machining center engineered for versatility and reliability across various industries, including automotive and mold processing. It features a spacious work envelope with travels of 1,050 mm in the X-axis and 570 mm in the Y-axis, supported by a heavy-duty table capable of holding up to 1,000 kg.
At its core is a high-speed, direct-coupled spindle (available in 8,000 to 15,000 rpm) that minimizes vibration and noise while delivering superior surface finishes. The machine is built with roller-type linear motion guideways for maximum rigidity and utilizes a standard thermal compensation system to ensure consistent accuracy during long production cycles.
Designed for operational efficiency, the DNM 5700 employs a grease lubrication system that significantly reduces maintenance costs and environmental impact compared to oil-based systems. With a rapid 30-tool automatic changer and compatibility with Fanuc, Siemens, or Heidenhain controls, it serves as a highly productive “workhorse” for precision engineering tasks.
Fixed Head Machines

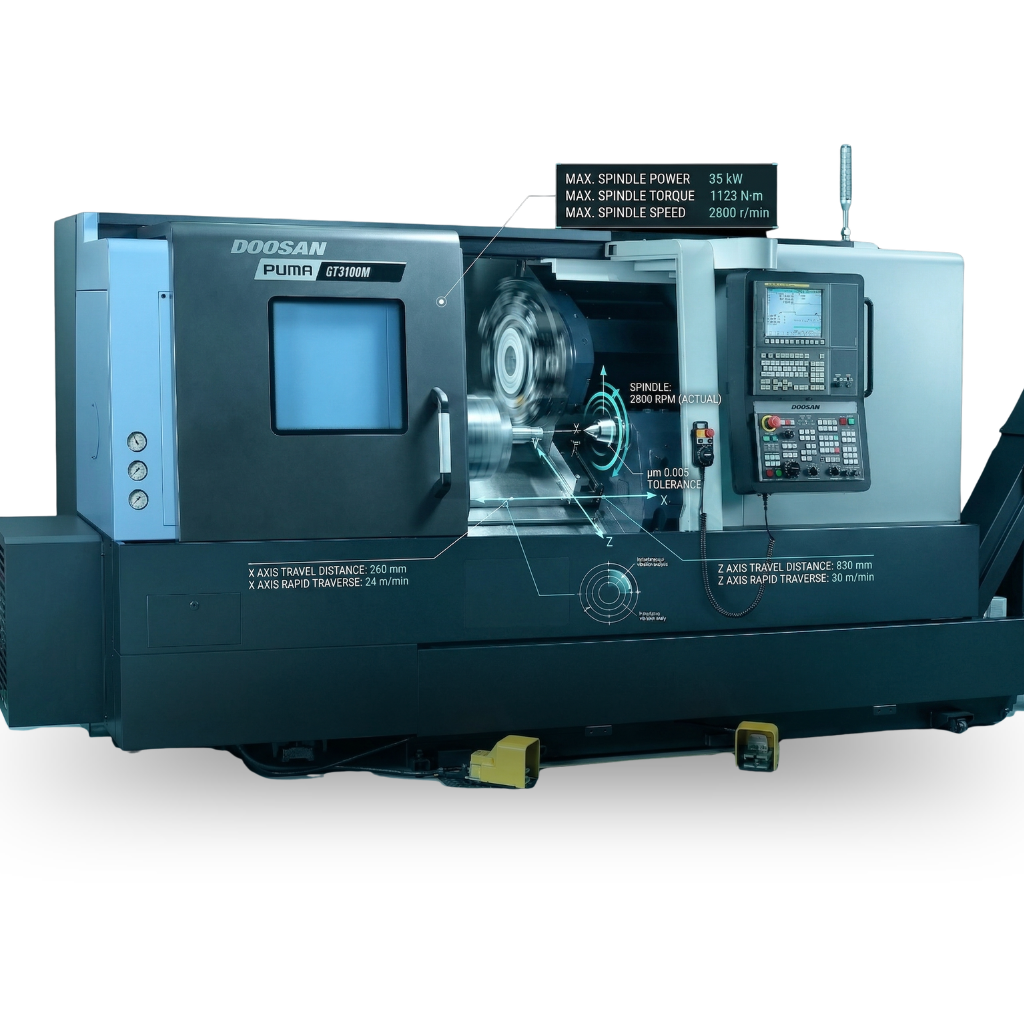

Puma GT 3100M
The Puma GT 3100M is a high-performance CNC horizontal turning center designed for heavy-duty metal cutting and industrial precision. Built with a rigid box guideway structure, this Doosan/DN Solutions lathe offers superior vibration damping and thermal stability. This robust engineering ensures maximum accuracy and a high-quality surface finish, even when machining tough materials for the aerospace, energy, and automotive industries.
The “M” in the model name highlights its milling capability, featuring a high-torque BMT turret for integrated turn-mill multitasking. This allows operators to perform turning, milling, drilling, and tapping in a single setup, significantly reducing cycle times and eliminating the errors caused by moving parts between machines. By streamlining the manufacturing process, the Puma GT 3100M maximizes shop floor productivity and lowers the cost per part.
Equipped with a powerful 35 kW spindle and delivering 1123 N-m of torque, this CNC lathe with driven tooling is built for high-efficiency metal removal. It features a large 12-inch chuck capacity and rapid traverse rates that minimize non-cutting time. For machine shops looking for a reliable, heavy-duty CNC turning center that balances raw power with sophisticated multi-axis versatility, the Puma GT 3100M is a top-tier solution.
